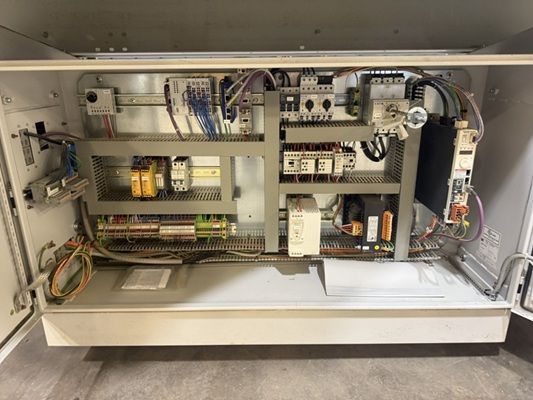

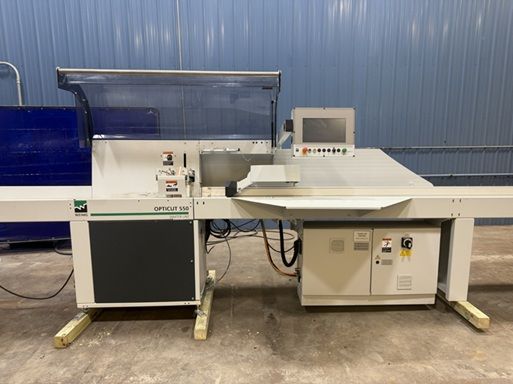

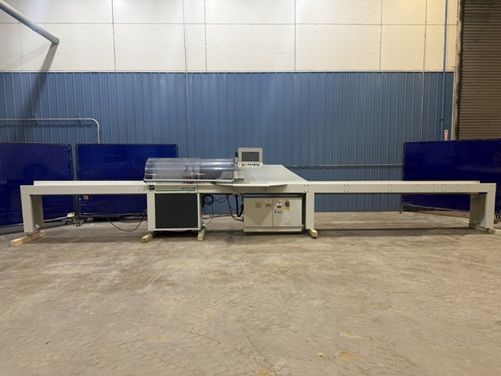

2022 WEINIG/DIMTER OPTIMIZING MODEL OPTICUT

S 50 CROSSCUT SAW

Incoming Lengths up to 45000 (14'-9 1/3")
Widths: 20mm - 300mm (0.787" - 11.81")
Thickness: 10mm - 100mm (0.394: - 3.937")
Minimum Crosscut Section: 10mm x 20mm (0.394" x 0.787")and
maximum 100mm x 300mm (3.937" x 11.81")
Opticom Pro Operating System
Saw Motor: 6.6kw (9HP)
Saw Blade Diameter: 500mm (19.685")
Swiveling Positioning Pusher Including Laser Photo-eye for Automatic Length Detection
Lateral Pressure Unit for More Dynamic Positioning and Rectangular Cut
Advance Speed up to 60 m/min (197FPM)
Accuracy Package fodr Positioning of Pusher +/- 0.5mm
Wide Infeed Table with crayon marking station
2.4m (94.49") out-feed table
New in 2022

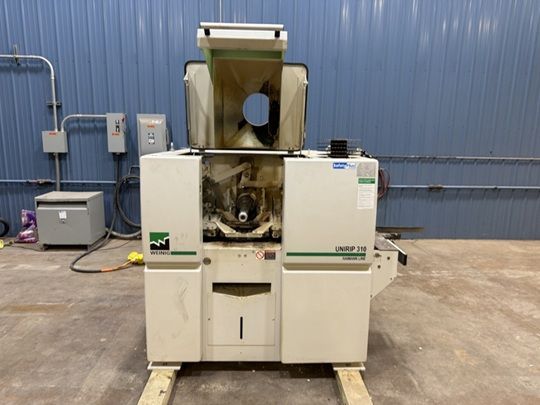

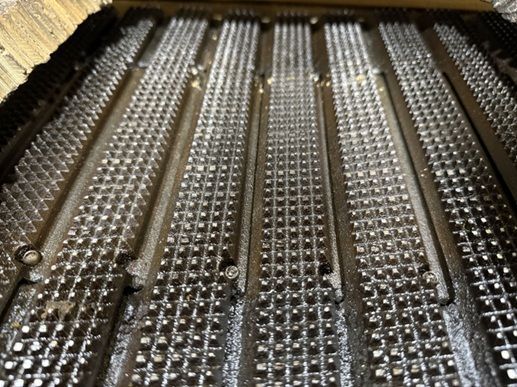

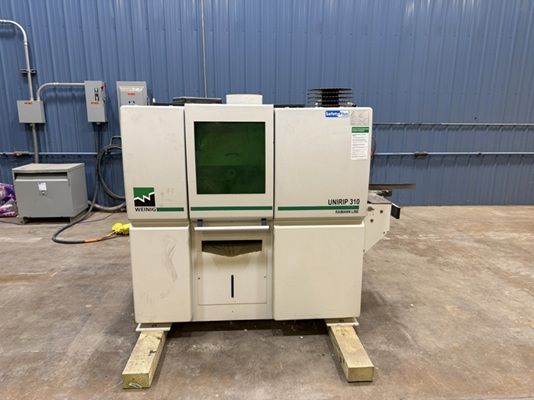

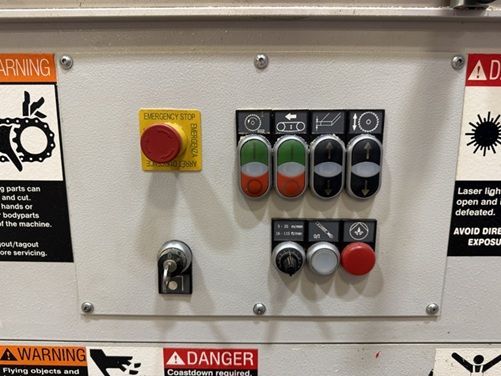

RAINMANN MODEL UNIRIP 310 GANG RIP SAW

Max Entry Width: 25.5: (650mm)
Feed Chain Width: 13.4" (340mm)
Max Feed Speed: 115 FPM (35m/min)
Min Board Length: 20" (500mm)
Max Cut Width: 12.2" (310mm)
Arbor Motor HP: 30HP (22kW)
Saw Blade Diameter (Min/Max) 300/350mm
Current Voltage: 460V 3ph 60hz
New in 2013

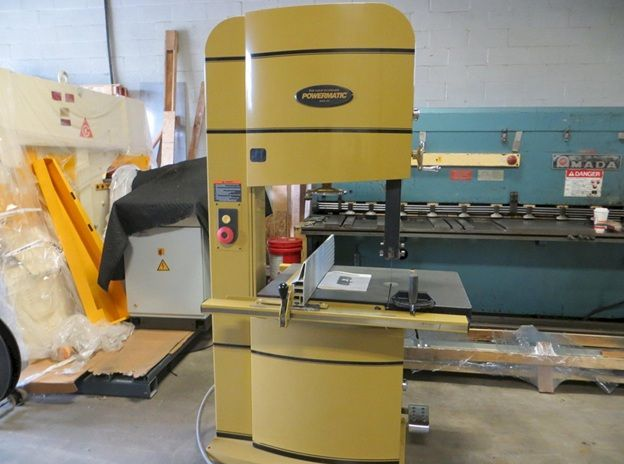

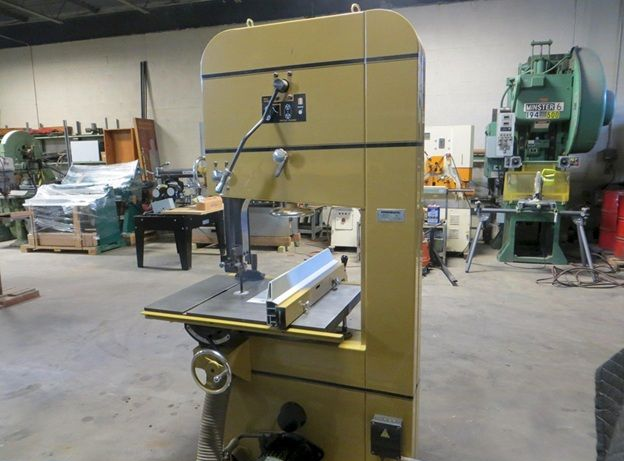

POWERMATIC 24" BANDSAW

MODEL: PM2415B
S/N# 15110029
STOCK# 1791260B

Specifications:
5HP, 3PH, 230 VOLT, Motor
183” BANDSAW BLADE LENGTH
T-SQUARE ACCU-FENCE
MIN. SAW BLADE WIDTH: ¼”
BLADE SPEED (SFPM) 2500/4800
CUT CAP. HEIGHT: 15”
CUT CAP. WIDTH: 24.0000
DUST PORT: 4”
REQUIRED CFM: 600
TILT TABLE 45 DEGREE (LEFT) 10 (RIGHT)
TABLE HEIGHT FROM FLOOR: 35”
¾” T-SLOT
DIMENSIONS: 47” X 47”X 82” (l x w x h)
NET WEIGHT: 1075 LBS

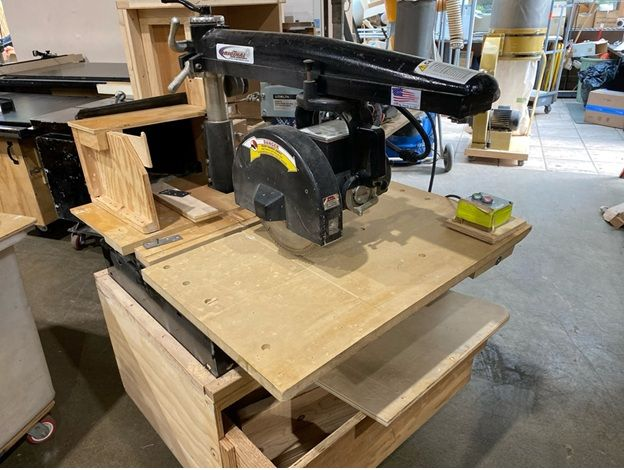

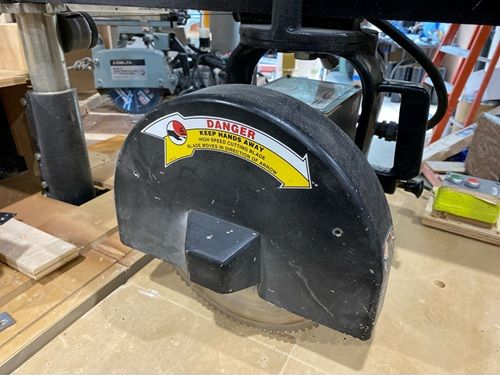

ORIGINAL 12" RADIAL ARM SAW (Heavy Duty)

Model 3512 type 6, S/N# 2014040421652

3HP, 3 PH, 220 Volts, TEFC enclosure, 3425 RPM, automatic brake, 1 x 2 3/16" arbor, 34 15/16" max. out rip, 24 1/4" max crosscut, 16" max. miter @ 45 degree / 1" stock,

3 1/16" max. depth of cut @ 90 degrees, 1 1/4" max. depth of cut @ 45 degrees, 40" rear of saw to front of arm. start / stop switch. mounted on storage box rolling stand

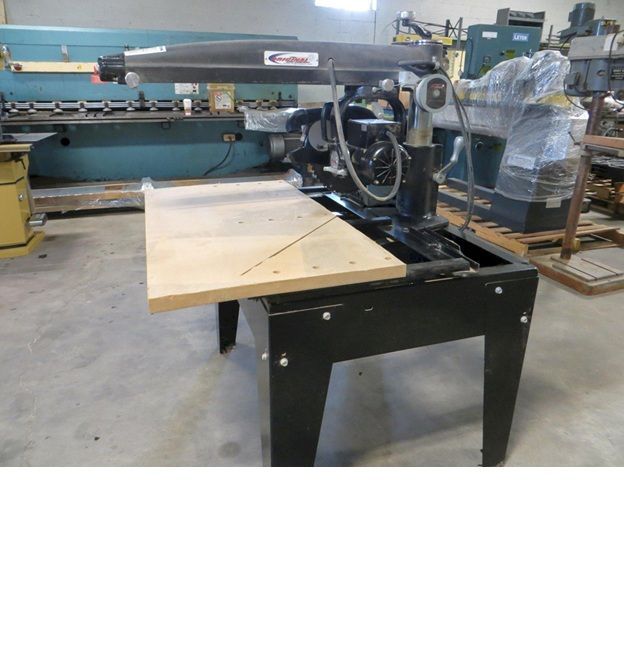

ORIGINAL 14" RADIAL ARM SAW (Like New)

MODEL:3536-03 TYPE 4
S/N#20160303035

3PH, 5 HP, 230 VOLT
24” MAX CROSS CUT
MAX. RIP OUT 37-7/8”
AUTOMATIC BRAKE
MAX. DEPTH OF CUT 4”
TABLE HEIGHT 33”
RETURN SPRING
CAPABLE OF RIP CUTS
NET WEIGHT 600 LBS.
PARTS AND SERVICE STILL AVAILABLE FROM MFG.

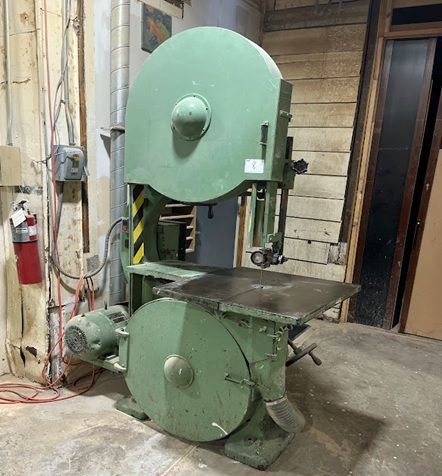

 USED TANNEWITZ 36” VERTICAL BANDSAW

3HP, 3PH, CAST IRON TILT TABLE, V BELT DRIVE, WITH CONTROLS, TABLE” 26” X 28”, 14-2” HEIGHT CAPACITY, AFTER MARKET CARTER GUIDES INSTALLED

DEWALT HEAVY DUTY 14” RADIAL ARM SAW
MODEL: GAMN TYPE B

MODEL: GAMN TYPE B, S/N# 8829

UP FRONT ON/ OFF SWITCH
REAR RAISE
Electrics: 3 HP, 220 Volt, 3PH
29” RIP CAPACITY
RETURN SPRING TO HEAD
OWNER BLADE GUARD

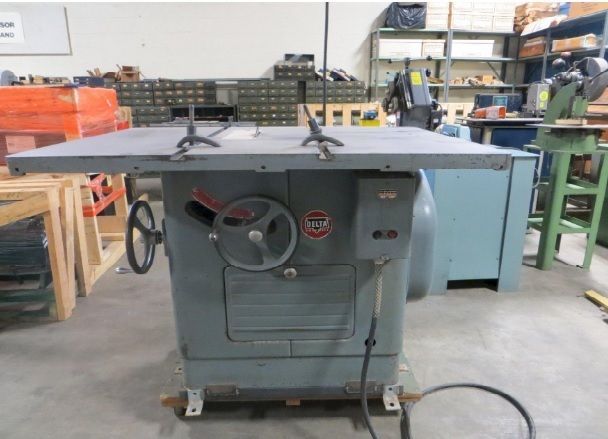

Rockwell Delta 1214

Tilting Arbor Table Saw - Serial # 117-2925

Max. Blade Diameter  12 in. or 14 in.
Arbor Diameter       1 in.
Max. Depth of Cut with 12" Blade 4-1/8 in.
Max. Depth of Cut with 14" Blade 5-1/8 in.
Max. Rip to Right of Blade       30 in.
Max. Rip to Left of Blade        20 in.
Distance front of table to blade: 22"
Table height: 34"
T-slot miter gage groove on either side of the blade
Cabinet size: 26-/2" x 30"
Motor: 5 HP, 220 Volt, 3 Phase, 3,450 RPM
MITER GAGE, FENCE, GUARD NOT INCLUDED
Approx. Weight: 820 lbs.
